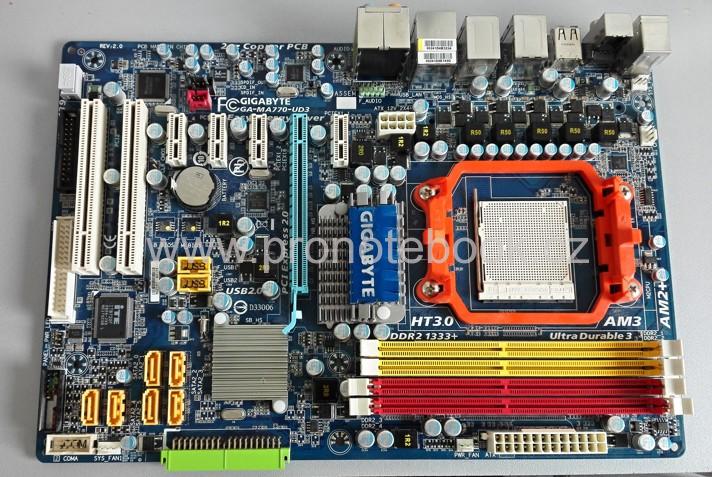

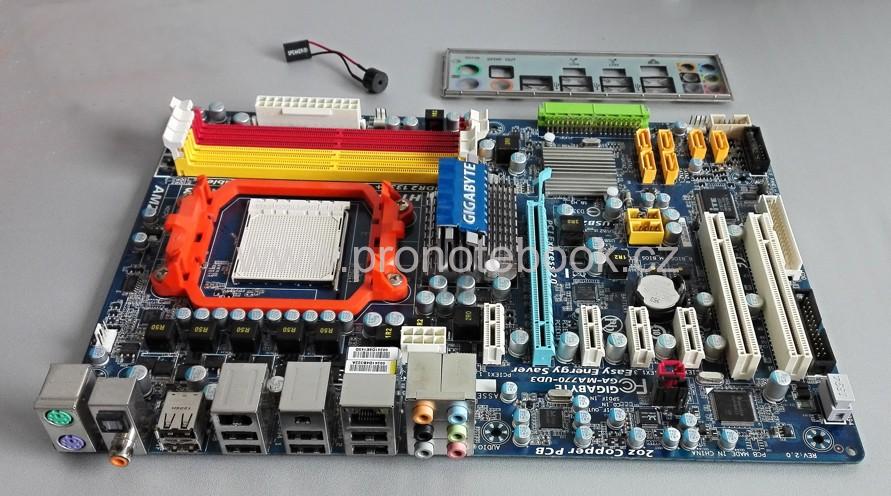

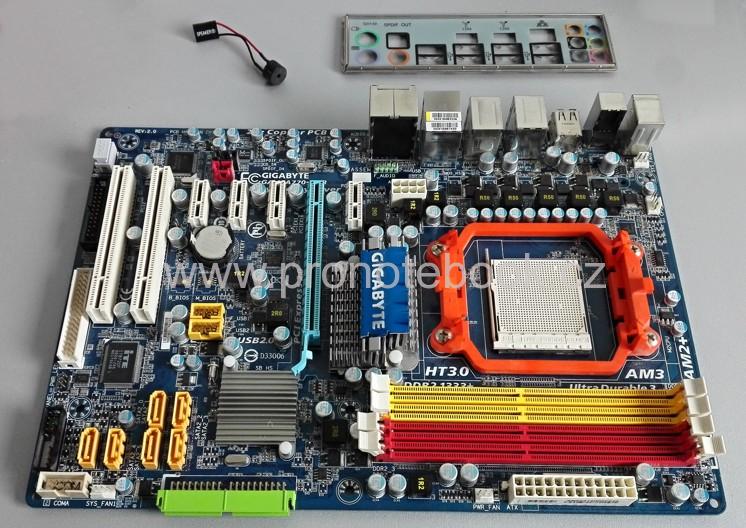

Gigabyte - GA-MA770-UD3 (rev. 2.0)

    Gigabyte - GA-MA770-UD3 (rev. 2.0)
    Gigabyte - GA-MA770-UD3 (rev. 2.0)
    Gigabyte - GA-MA770-UD3 (rev. 2.0)
    Gigabyte - GA-MA770-UD3 (rev. 2.0)
    Gigabyte - GA-MA770-UD3 (rev. 2.0)

    GA-MA770-UD3

    Gigabyte - GA-MA770-UD3 (rev. 2.0)   CPU Support for AM3 / AM2+ / AM2 processors (Note1): AMD Phenom™ II X4 processor/ AMD Phenom™ II X3 processor/ AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 proce... celý popis
    Dostupnost
    Není skladem
    Nejsme plátci DPH
    1 100 Kč
    / ks
    Momentálně není k dispozici
    Číslo produktu:PN335
    Kompletní specifikace

    Gigabyte - GA-MA770-UD3 (rev. 2.0)



    CPU
    1. Support for AM3 / AM2+ / AM2 processors (Note1): AMD Phenom™ II X4 processor/ AMD Phenom™ II X3 processor/ AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™processor
    Hyper Transport Bus
    1. 5200/2000 MT/s
    Chipset
    1. North Bridge: AMD 770
    2. South Bridge: AMD SB710
    Memory
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note2)
    2. Dual channel memory architecture
    3. Support for DDR2 1333(OC)/1066(Note 3)/800/667 MHz memory modules
    4. Support ECC memory (Note 4)
    Audio
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
    LAN
    1. Realtek 8111C/D(L) chip (10/100/1000 Mbit)
    Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIE_16)
      (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
    2. 4 x PCI Express x1 slots
    3. 2 x PCI slots
    Storage InterfaceSouth Bridge:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1 and RAID 0+1
    iTE IT8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    IEEE 1394T.I. TSB43AB23 chip
    1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)
    USBIntegrated in the South Bridge
    1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x IEEE 1394a header
    16. 1 x parallel port header
    17. 1 x serial port header
    18. 1 x power LED header
    19. 1 x chassis intrusion header
    Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x coaxial S/PDIF Out connector
    4. 1 x optical S/PDIF Out connector
    5. 8 x USB 2.0/1.1 ports
    6. 2 x IEEE 1394a ports
    7. 1 x RJ-45 port
    8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    I/O Controller
    1. iTE IT8720 chip
    H/W MonitoringSystem voltage detection
    1. CPU/System temperature detection
    2. CPU/System/Power fan speed detection
    3. CPU overheating warning
    4. CPU/System/Power fan fail warning
    5. CPU fan speed control (Note 4)
    BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Unique Features
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune (Note 6)
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Virtual Dual BIOS
    8. Support for Easy Energy Saver (Note 7)
    Bundle Software
    1. Norton Internet Security (OEM version)
    Operating System
    1. Support for Microsoft® Windows Vista/XP
    Form Factor
    1. ATX Form Factor; 30.5cm x 21.0cm
    Note(Note 1) We recommend that you enhance heat dissipation for the CPU VRM area if an AMD Black Edition CPU is installed and the Advanced Clock Calibration is enabled.
    (Note 2) Due to Windows® XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 3) Whether 1066 MHz or above memory speed is supported depends on the CPU being used.
    (Note 4) Use of a CPU that supports ECC is required if you wish to install ECC memory.
    (Note 5) Whether the CPU/ system fan speed control function is supported will depend on the CPU/ system cooler you installed.
    (Note 6) Available functions in EasyTune may differ by motherboard model.
    (Note 7) Due to the hardware limitation, you must install the AMD AM3 Phenom II/ AM2+ Phenom series CPU to enable support for Easy Energy Saver.



    Stav: použité/plně funkční/perfektní




    Záruka 6. měsíců.
